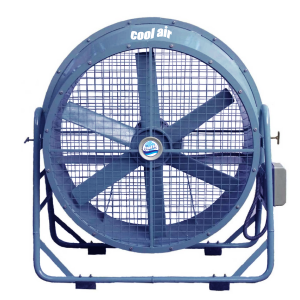

Coolair Pedestal Mancooler

Name: Coolair Pedestal Mancooler
SKU: 558
Availability: InStock

₹24,500.00 – ₹29,500.00

Size

Phase

Clear

Coolair Mancooler discharge powerful air streams providing effective velocities over a longer distance.
Direction of air discharge can be adjusted over a wide angular range and can be instantly locked in position.
The die cast aluminium Impeller is aerodynamically designed to provide maximum air delivery.
Totally enclosed squirrel cage induction motor with Class B insulation.
Strong wire guard for safety.

Sweep		Supply		Speed	Power		Total Air delivery at 10 Times Blade Sweep		Minimum Peak Air Delivery at a distance of
Sweep		Supply		Speed	Power		Total Air delivery at 10 Times Blade Sweep		10 times Blade Sweep	15 times Blade Sweep
Inch.	mm	Volts	Phase	R.P.M.	Watts	H.P.	C.F.M.	m³ / hr	m³ / min	m³ / min
12	300	230/415	Single/Three	2850	250	0.33	5250	9000	250	200
19	480	230	Single	1440	375	0.5	7000	12000	200	120
19	480	415	Three	1440	375	0.5	7000	12000	200	120
19	480	415	Three	2900	1800	3.0	13000	28000	250	200
24	600	230	Single	1440	500	1.0	16500	28000	250	150
24	600	415	Three	1440	500	1.0	16500	28000	250	150
30	750	415	Three	1440	1400	2.0	21500	37500	250	150
36	900	415	Three	960	1500	2.0	32500	55250	250	150
36	900	415	Three	1440	2000	3.0	37500	63750	275	175
40	1000	415	Three	960	3500	5.0	37000	63000	250	150
48	1200	415	Three	960	3700	5.0	43800	74500	250	150

Size	19" (482MM), 24" (600MM), 30" (750MM), 36" (900MM), 40"(1000MM), 48" (1200MM)
Phase	220v, 440v
